Sample files:        https://persephonesoft.com/data/import/coffee-chr-2.paf, https://persephonesoft.com/data/import/coffee-chr-2.ribbon

You can import syntenic blocks between a pair of map sets, from files in PAF format (as generated by minimap2) or Persephone's own Ribbon format (described below). In both cases, Persephone generates a Synteny track based on the loaded alignments.

Note

Currently, syntenic blocks may be loaded only into your local browser session, and are not preserved in long-term private storage.

Loading a PAF file

PAF files are most often generated by the minimap2 sequence alignment tool. For example, you could export the 2nd chromosome from two different varieties of Coffee (Cara_1.0 / chromosome 2c and C. canephora DH200-94 / chr2), then run a command like this:


minimap2 Cara_1.0_chromosome_2c.fa NCBI_GCA_900059795.1_chr2.fa -o coffee-chr-2.paf -w 100 -N2 -k 28 --secondary "no" -n 50

Doing so will generate a file similar to this one:

chr2        54522928        1913458        3668220        +        chromosome_2c        66155350        1933959        3726389        542823        1899924        60        tp:A:P        cm:i:21967        s1:i:484204        s2:i:5431        dv:f:0.0021        rl:i:43026
chr2        54522928        383369        1745800        +        chromosome_2c        66155350        415962        1787337        411096        1469501        60        tp:A:P        cm:i:16531        s1:i:363527        s2:i:1277        dv:f:0.0023        rl:i:43026
chr2        54522928        16899161        17755896        +        chromosome_2c        66155350        16071734        16937662        281264        914874        60        tp:A:P        cm:i:11451        s1:i:256306        s2:i:0        dv:f:0.0011        rl:i:43026
chr2        54522928        18988693        19720073        +        chromosome_2c        66155350        17813710        18578900        243294        800925        60        tp:A:P        cm:i:9867        s1:i:218920        s2:i:5131        dv:f:0.0014        rl:i:43026
chr2        54522928        11171307        11891640        +        chromosome_2c        66155350        11049418        11811594        239832        792063        60        tp:A:P        cm:i:9710        s1:i:216279        s2:i:41112        dv:f:0.0020        rl:i:43026
chr2        54522928        3895663        4532476        +        chromosome_2c        66155350        4026534        4650758        193204        667862        60        tp:A:P        cm:i:7779        s1:i:175667        s2:i:0        dv:f:0.0019        rl:i:43026
...

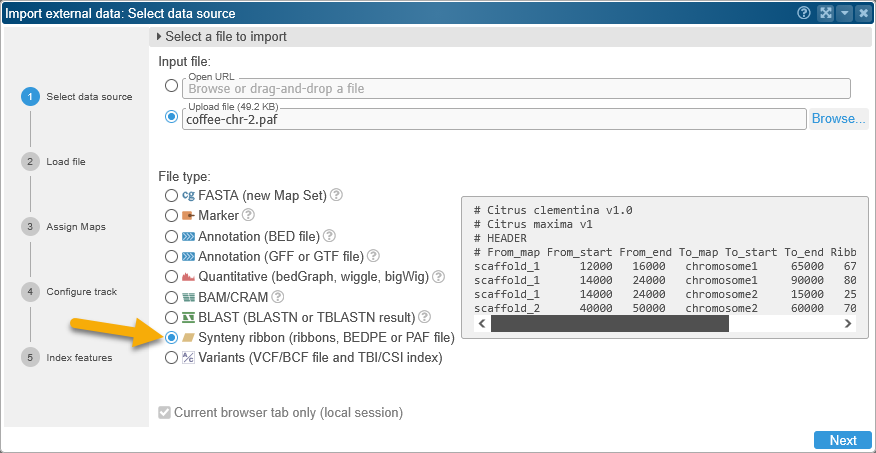

Drag-and-drop the output file onto Persephone's browser tab (or open the Import dialog and browse for the file), and Persephone will auto-detect its file type:

On the following screens, you will be prompted to assign the correct map sets to both the query and the target sequences in the imported file, in order to match the map names in the file with the correct maps in each map set. Most of the time, this process will happen automatically; however, minimap2 may not always handle spaces in FASTA headers correctly. Thus you may need to rename the maps in your input file, then match some of the maps by hand:

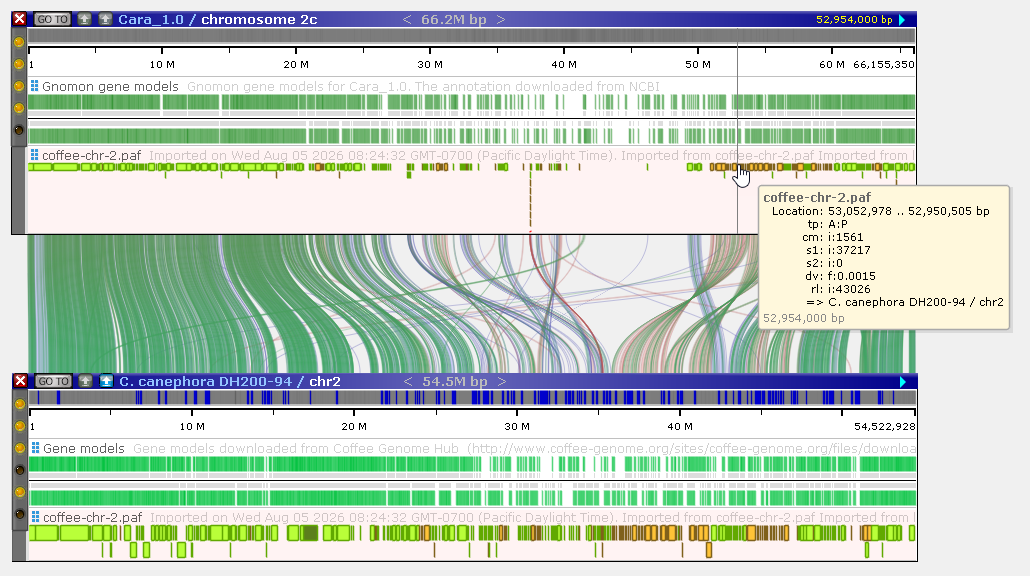

Finally, the imported alignments will be displayed as a Synteny track:

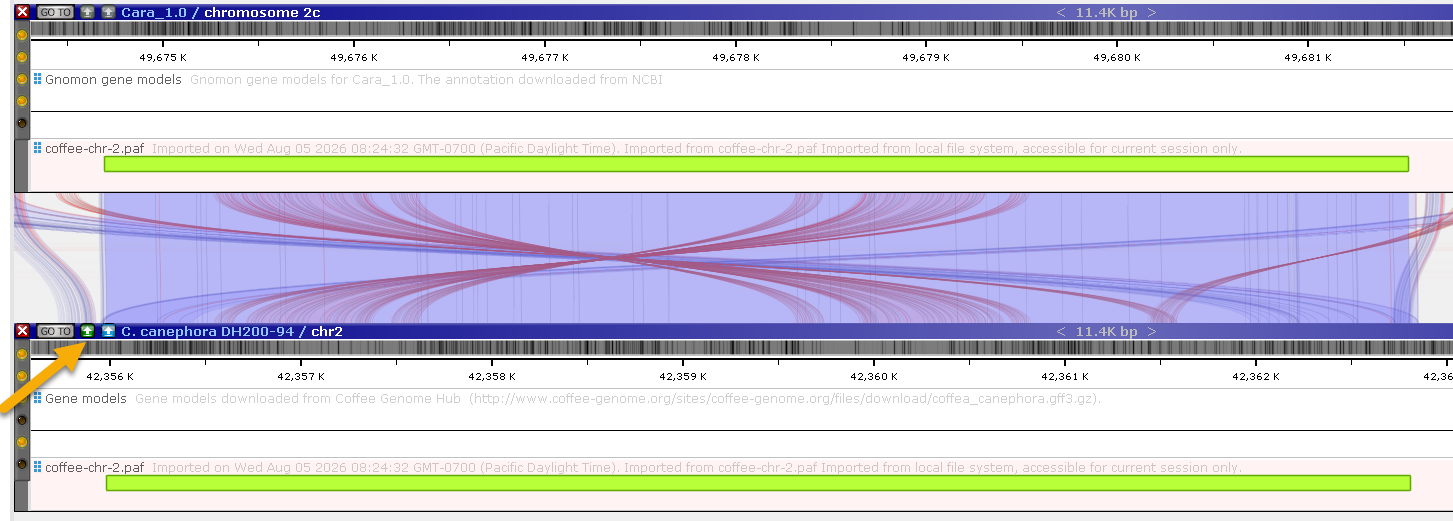

If needed, you can generate a more detailed alignment using Instant BLASTN. For example, you can zoom in on the repeat around 37 Mbp, then press the Instant BLASTN button on the bottom map to generate a nucleotide-level alignment:

Loading a Ribbon file

Persephone's ribbon file format is a tab-separated CSV file with an optional header. The file describes ribbons between maps belonging to a pair of map sets:

# C. canephora DH200-94
# Cara_1.0
# HEADER
#FROM_MAP        FROM_START        FROM_END        TO_MAP        TO_START        TO_END        RIBBON_NAME        Color
chr2        21319760        21393620        chromosome 2c        19259583        19326412        A        Red
chr2        21407044        21462494        chromosome 2c        19340426        19392305        B        Green
chr2        21483190        21497662        chromosome 2c        19438579        19452965        C        #99ccff

If the header is present, it must contain exactly 4 lines:

1. The exact name or accession of the top map set.
2. The exact name or accession of the bottom map set.
3. The literal string "#HEADER".
4. The list of columns in the file; this is for documentation purposes only, and has no effect on parsing the file.

The body of the file describes the ribbons; one ribbon per line, specified by 6 to 8 tab-separated columns:

1. The exact name or accession of a map belonging to the top map set.
2. The starting position of the ribbon on this map (in bp, 1-based).
3. The ending position of the ribbon on this map (in bp, 1-based).
4. The exact name or accession of a map belonging to the bottom map set.
5. The starting position of the ribbon on that map (in bp, 1-based).
6. The ending position of the ribbon on that map (in bp, 1-based).
7. (optional) The name of the ribbon (to be displayed in the popup balloon for this ribbon's bar on the Synteny track).
8. (optional) The ribbon's color. This can be a color name such as "Red" or an HTML color code such as "#99ccff".

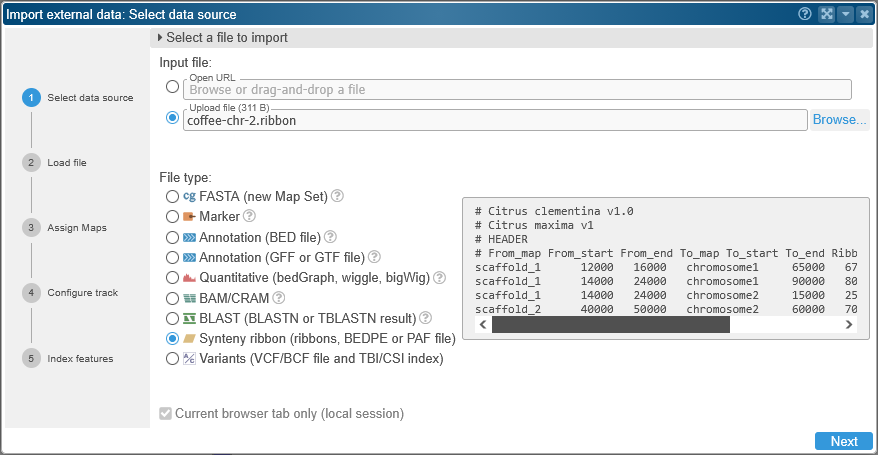

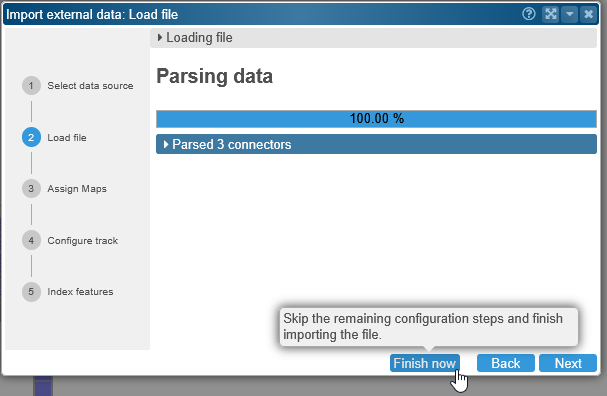

To import this file, drag-and-drop it onto Persephone's browser tab, or browse for it in the Import dialog. If the file contains a valid header, and all of the map set names and map names in the file match those in Persephone's database (or user storage), then you could click Next and then Finish now to import the file immediately:

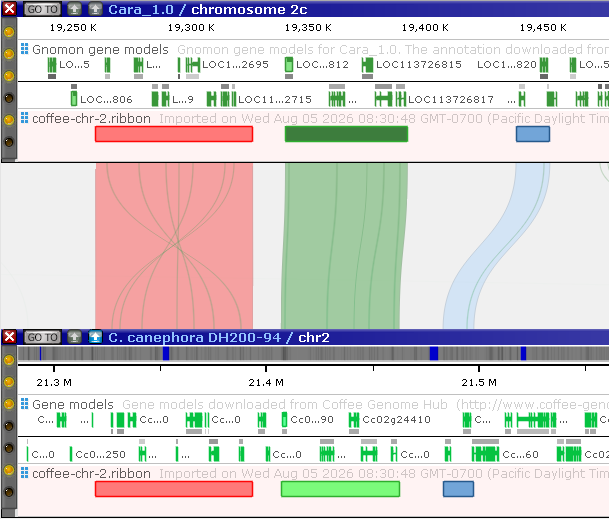

The sample file above will produce three ribbons:



Note

You can also load Ribbon files into Persephone's database using PersephoneShell.
